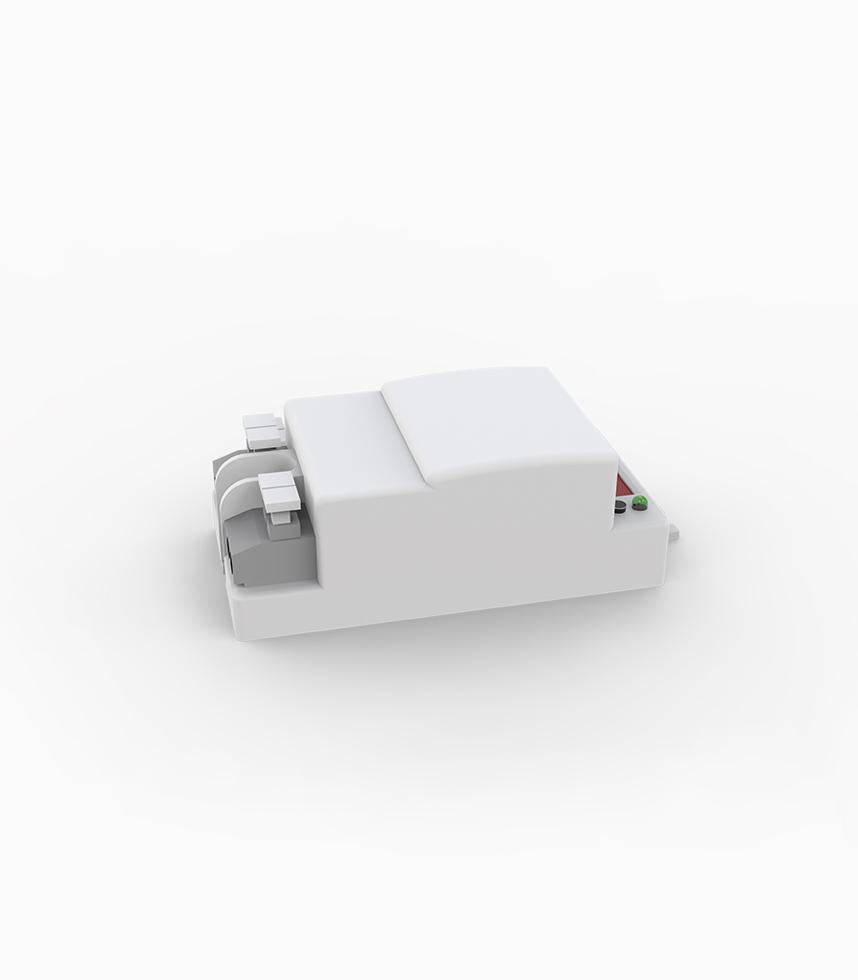

Microwave sensor 16 m, internal kit

$37.49 Prices include local taxes

Features: A compact Microwave sensor with a wide detection area suitable for indoor use, internal, wall or ceiling mounting. Switching capacity max. 800W Supplied with 170 mm cable ready to...

SKU: zc-mw-basic

Product type:

Vendor: zencontrol

Categories: DALI

Features:

A compact Microwave sensor with a wide detection area suitable for indoor use, internal, wall or ceiling mounting.

Switching capacity max. 800W
Supplied with 170 mm cable ready to wire
Control based on ambient light and motion detection
5.8 GHz continuous wave radar, ISM band (industrial, scientific and medical)
Motion can be detected through plastic, glass and thin non-metal materials
Zero-crossing operation helps protect the sensor against high in-rush current

Specifications
Sensors	Microwave, ambient light
HF system	5.8 GHz CW radar, ISM band, Less than 0.5 mW
Supply voltage	230 V ~
Power consumption	Less than 0.5 W (stand by)
Operating temperature	20 to 60°C
Output load	800 W resistive 400 W inductive 200 W capacitive, LED
Min. load	5 W
Detection motion speed	0.5 - 3 m/s
Ingress protection	IP20
Material	PC
